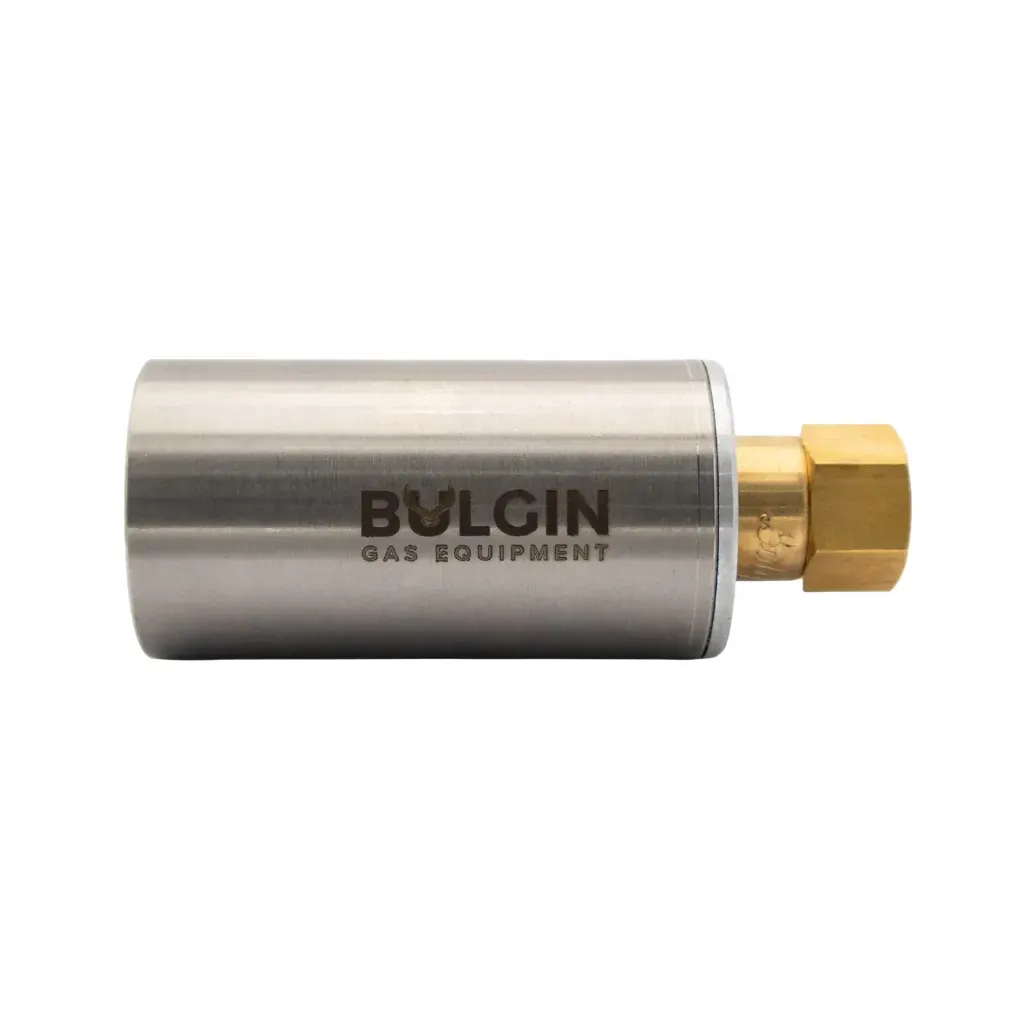

Air Propane Power Burner 38mm 1/2 x 26 Female Aluminium Base Bulgin 619-00013

DESCRIPTION:

The Bulgin air-propane power burner 38mm is a professional-grade heating burner designed for trade and industrial applications requiring controlled, stable, and efficient heat. Delivering up to 74 MJ/h of heat output, the 38mm burner provides a versatile balance of heating performance, compact size and economical LPG consumption for general-purpose heating applications. Designed for use with propane/LPG air-mixed systems, the burner produces a strong, stable broad flame suitable for steel preheating, fabrication, maintenance, roofing, drying, and general industrial heating. This model features a robust aluminium burner base with a 1/2" x 26 BSB female connection, making it suitable for compatible torch assemblies, neck tubes, manifold systems and purpose-built industrial heating equipment.

FEATURES:

• Professional-grade 38mm air–propane Power Burner
• 74 MJ/h heating capacity
• Strong, stable broad flame for controlled and even heating
• 1/2" × 26 BSB female burner connection
• Robust aluminium burner base
• Designed for propane / LPG air-mixed heating systems
• Suitable for single-burner and manifold applications
• Good balance of heat output and LPG consumption
• Compact, robust and serviceable construction
• Suitable for professional workshop, field and industrial applications

TYPICAL APPLICATIONS:

• Steel preheating prior to welding
• Fabrication and maintenance
• Heat shrinking
• Roofing and waterproofing
• Bitumen membrane installation
• Manufacturing and production processes
• Drying and surface preparation
• Multi-burner manifold systems
• General industrial heating
• Custom industrial heating equipment

DESIGNED FOR PROFESSIONAL PERFORMANCE:

The 38mm Bulgin Power Burner provides a versatile heating solution for applications requiring more thermal output than smaller burners while retaining a compact burner size and relatively low LPG consumption. Its 38mm burner head produces a broad flame pattern designed to distribute heat evenly across the work area, making it particularly suited to fabrication, maintenance, preheating and general trade applications. For specialised manufacturing and heating processes, the 38mm Power Burner can also be incorporated into a multi-burner manifold arrangement, allowing multiple burners to distribute heat across a larger or specifically defined work area.

SPECIFICATIONS:

*LPG consumption of 1.6 kg/h is based on operation at 200 kPa

POWER BURNER RANGE COMPARISON:

The 38mm model forms part of the broader Bulgin Air–Propane Power Burner range, allowing burner size and heat output to be selected according to the application.

*LPG consumption at 200 kPa operating pressure.

WHY CHOOSE THE 38MM POWER BURNER:

The 38mm Power Burner provides a versatile middle ground between the compact 32mm burner and the higher-output 50mm model. With a heat output of 74 MJ/h, it provides increased heating capacity while maintaining relatively low LPG consumption of approximately 1.6 kg/h at 200 kPa.

The 38mm burner is particularly suited where:

Controlled broad-flame heating is required
Smaller-to-medium steel components require preheating
Greater heat output than the 32mm burner is preferred
LPG consumption and portability are important considerations
Multiple burners are being incorporated into a purpose-built manifold system

Part Number/SKU: 619-00013
