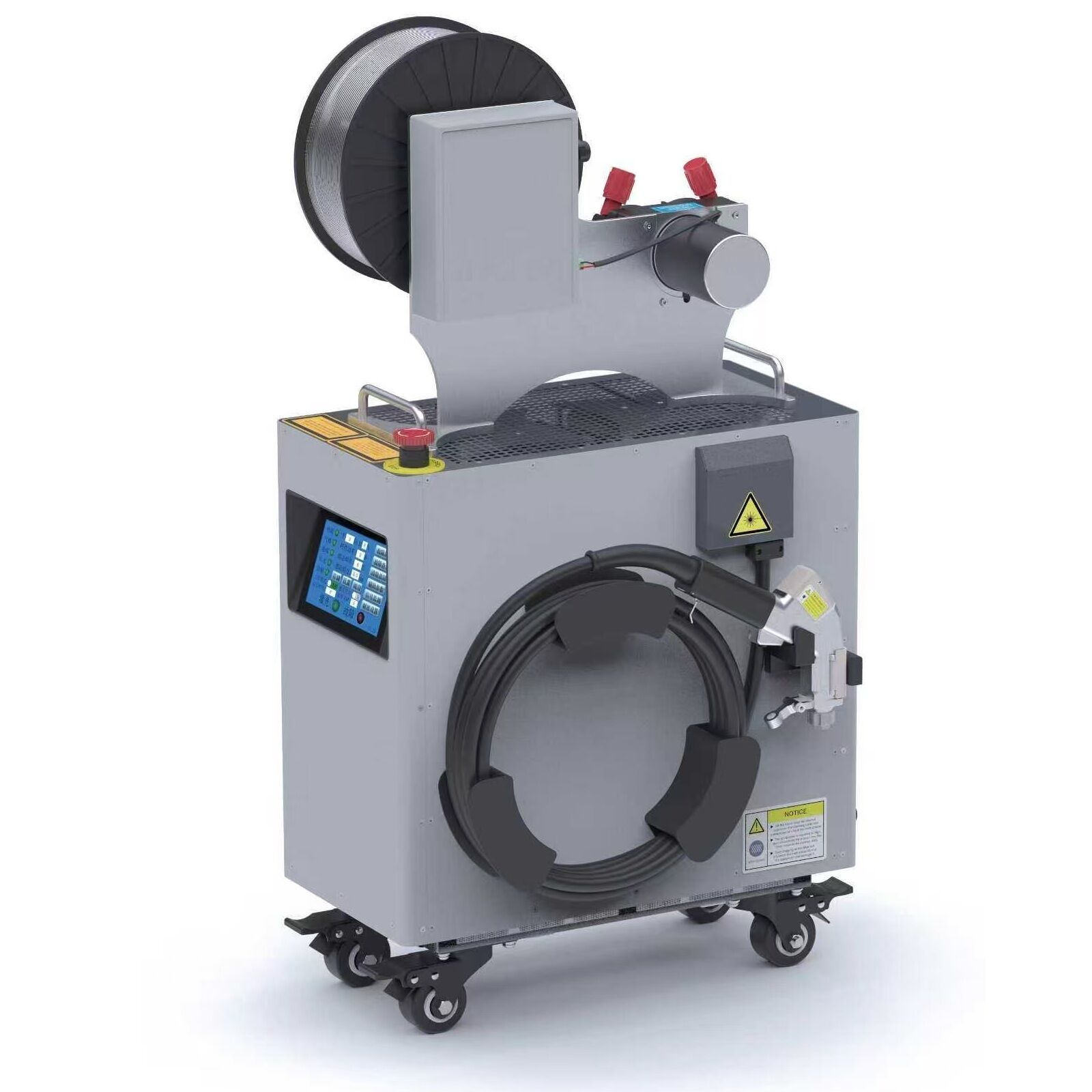

Air-Cooled Laser Welder A200 Pro-T With Wire Feeder Reci A200PRO-T

DESCRIPTION:

Pro series is a conventional air-cooled laser welding machine produced by Reci Laser. It has excellent output laser beam quality, a small spot, and large penetration, which improves the surface finish and welding strength of the product during welding processing. An intelligent air-cooled laser welder designed for small and medium-sized processing plants and metal processing workshops, with "high precision + high stability" as the core, meets the flexible production needs of multiple materials, multiple thicknesses, and multiple scenarios.

CORE FUNCTIONS:

• Efficient Welding: Supports welding of common materials such as steel, stainless steel, and aluminium, with a thickness of up to 8mm, a small heat-affected zone, and extremely low deformation.
• Quickly get started: With a one-click call of preset parameters, which can be mastered by novices in a few hours, this supports wire feeder expansion and adapts to switching between thick and thin materials.
• Flexible and Lightweight: Ergonomic handheld torch design, built-in swing function optimises seam adaptability, lightweight body is burden-free for long-term operation.

APPLICABLE SCENARIOS:

Small and medium-sized manufacturing, maintenance workshops, mass production of cost-sensitive & higher requirements for weld seam surface.

FEATURES:

• Smooth Welds: Even and beautiful welds, no need to polish again, and save time.
• Full Stack Integration: Laser, motor, wire feeder, controller - integrated, providing excellent performance and stability.
• Low Investment: Laser, motor, and wire feeder. Purchase cost is 30% lower than the other brand products with the same specifications.

• TECHNICAL SPECIFICATIONS:

  OPTICAL CHARACTERISTICS:

  Central Wavelength (nm)	1080+3
  Polarization State	Random
  Operating Mode	Continuous welding and spot welding
  Rated Average Power (W)	1750W
  Maximium Design Power (W)	2000W
  Output Power Range	10~100%
  Wall-Plug efficiency (WPE)	≥ 35%
  Output Power Stability	<2%@1h
  Red Laser Power (mW)	≥ 0.4
  Fibre Core Diameter (μm)	20
  Laser Output Method	QCS+Welding gun
  Output Cable length (m)	5 (Standard Configuration)

  ELECTRICAL CHARACTERISTICS:

  Input Power	AC220V 50/60Hz
  Power Consumption(W)	5800
  Control System	Touch Screen / Host Computer Control

  MECHANICAL CHARACTERISTICS:

  Cooling System	Air
  Operating Temp. Range (°C)	-30~40
  Operating Humidity (%RH)	RH10%~RH90%
  Storage Temperature(°C)	-30~60
  Gas Input Pressure (MPa)	≤0.7
  Dimension (WxDxH) mm	323 X 629 X 684.2
  Weight (kg)	58
  Welding Gun	GWH-2000
  Wire Feeder	WF1

Part Number/SKU: A200PRO-T

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
