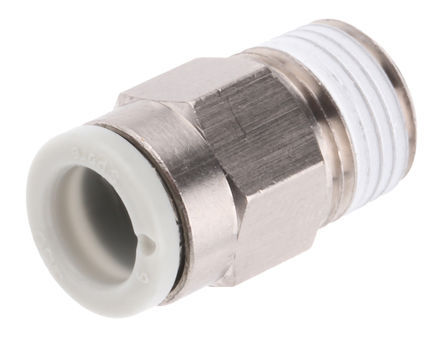

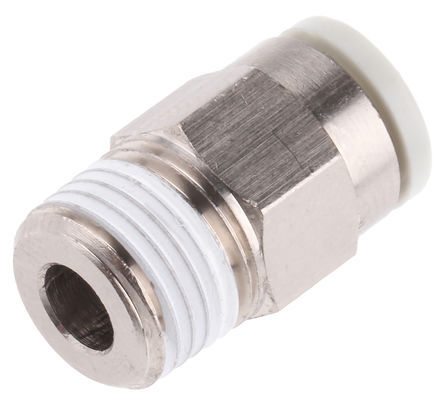

8mm STRAIGHTS  8 x 1/8 - KQ2H08-01NS



Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
 Insertion force: Max. 30% reduction
 Removal force: Max. 20% reduction
・Compact and lightweight
 Dimensions height direction 24% shorter
 Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

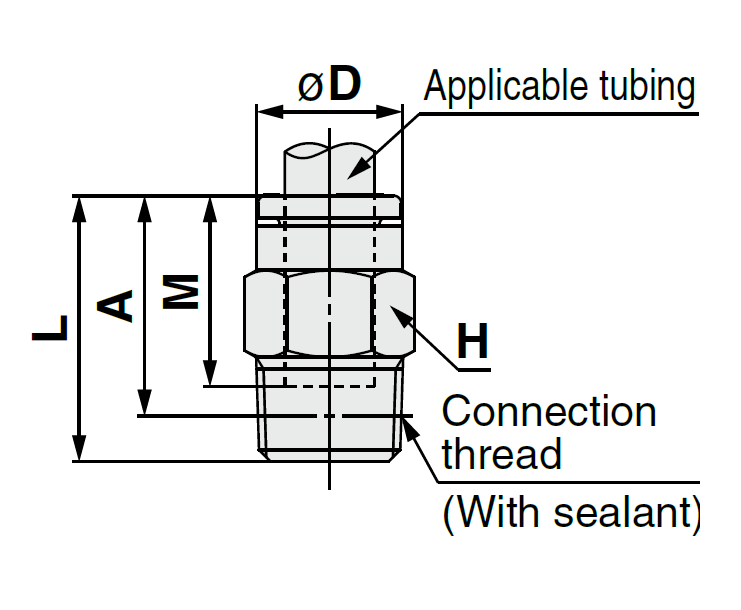

Specifications:

Applicable
tubing O.D.
(mm)
Connection
thread
R
Model H
(Width
across
flats)
øD L A* M Effective area
(mm2)
Min.
port
size
Weight
(g)
Nylon Urethane
ø8 1/8 KQ2H08-01NS 14 13 22.5 19.4 14.2 26.1 18 6 11.9




Part Number/SKU: KQ2H08-01NS

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2H08-01NS
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
