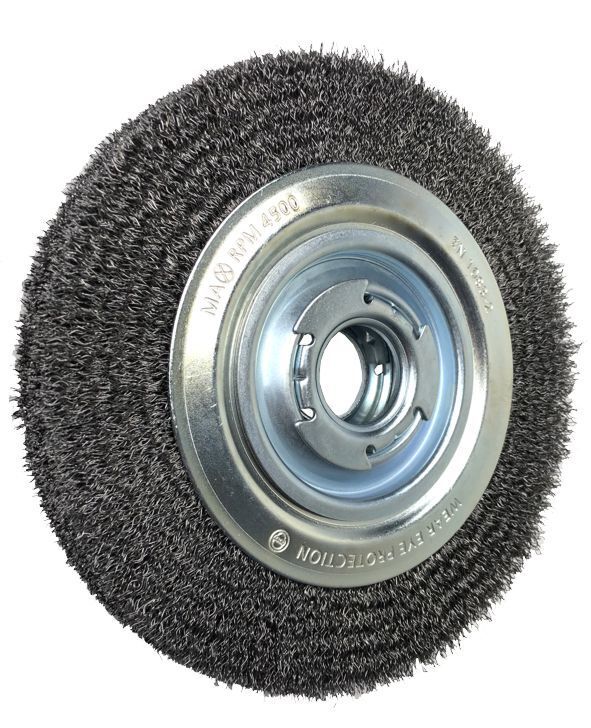

8" 200mm Wire Wheel Brush Bench Grinder Crimped Knot Steel Metal RBU 20025 PFERD 43740017

DESCRIPTION:

Excellent for medium-duty hand-held or automated brushing of workpieces with large surfaces. Developed for general use in the workshop.
Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. Pferd tools special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

FEATURES:

  • Can be used with all commercially available stationary drive systems and bench grinders, thanks to the variable hole diameter.
  • Optimum presentation on the Pferd tools centre using hanging hole and labelling with EAN number, designation and filament material.
  • Long tool life through the use of Pferd tool special wire.

MATERIALS THAT CAN BE WORKED:

  • Cast iron
  • Cast steel
  • Elastomers
  • Steel, cast steel
  • Steel materials with a hardness > 54 HRC
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Thermosetting plastics
  • Wood



APPLICATIONS:

  • Cleaning
  • Deburring
  • Derusting
  • Paint stripping
  • Removing oxide layers
  • Roughening

DRIVE TYPES:

  • Automated centres
  • Bench grinder

SPECIFICATIONS:

Dia. external 200 mm
Dia. filament material 0.3 mm
Dia. hole 31.8 mm
Dia. hole included in the set 31.75/20/18/14/12/25.4 (1)/22.2 (7/8)/19.2 (.750)/
16 (5/8)/12.7 (1/2)
Dia. hole, max. 50.8 mm
Filament material Steel wire (ST)
Grit size -
Length, filament 32 mm
Max. RPM 4500 RPM
Mounting system Centre hole
RPM, optimum 2300 - 3500 RPM
Width 25 mm



Alternative SKU: 764213

Part Number/SKU: 43740017

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU 43740017
Barcode # 4007220398159
Brand Pferd
Shipping Weight 1.50kg
Shipping Width 0.270m
Shipping Height 0.060m
Shipping Length 0.250m
Shipping Cubic 0.004050000m3
Unit Of Measure ea
