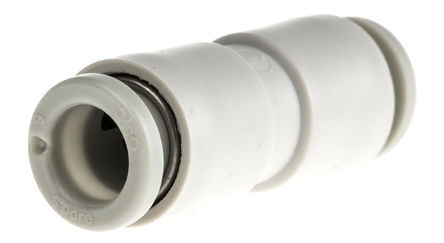

6mm STRAIGHTS Union - KQ2H06-00A1



Features:

  • Possible to use in vacuum to –100 kPa.
  • Improved tube insertion/removal
  • Insertion force: Max. 30% reduction
  • Removal force: Max. 20% reduction
  • Compact and lightweight
  • Dimensions height direction 24% shorter
  • Dimensions horizontal direction 23% shorter, Weight 57% lighter
  • Body type: Totaled 51 models
  • Thread material/Surface treatment(Treated or Non-treated): 2 types
  • Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

Applicable
tubing O.D.
(mm)

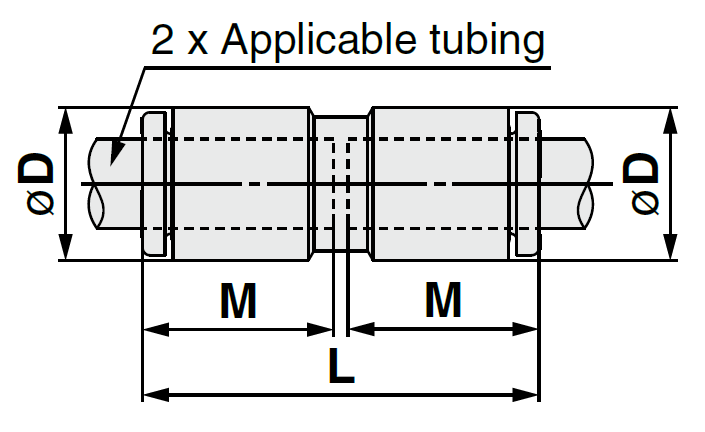

Model øD Note) L M Effective area
(mm2)
Min.
port
size
Weight
(g)
Nylon Urethane
ø6 KQ2H06-00A1 10.4 27.6 13.3 13.1 10.4 4.5 2.1




Part Number/SKU: KQ2H06-00A1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2H06-00A1
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
