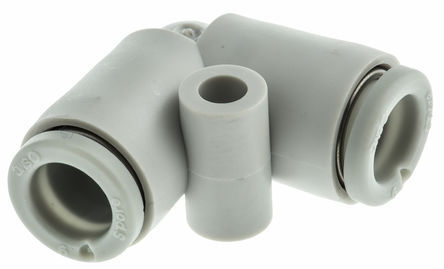

KQ2L04-00A1 Union

Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
　Insertion force: Max. 30% reduction
　Removal force: Max. 20% reduction
・Compact and lightweight
　Dimensions height direction 24% shorter
　Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

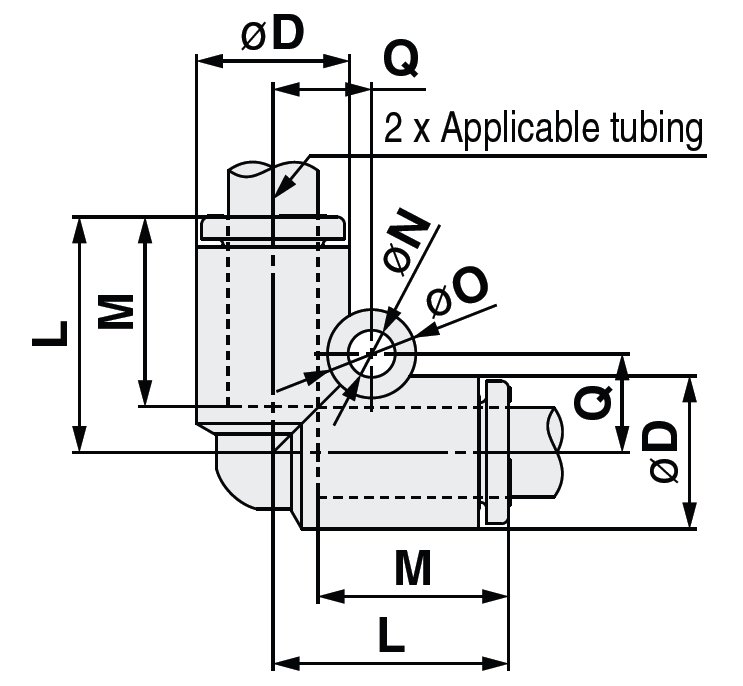

Specifications:

Applicable
tubing O.D.
(mm)		 Model Note)
øD		 L Q M øO øN Effective area
(mm2)		 Min.
port
size		 Weight
(g)
Nylon Urethane
ø4 KQ2L04-00A1 8.2 15.3 5.7 13.3 6 3.2 4.2 4.2 3 1.9




Part Number/SKU: KQ2L04-00A1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2L04-00A1
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
