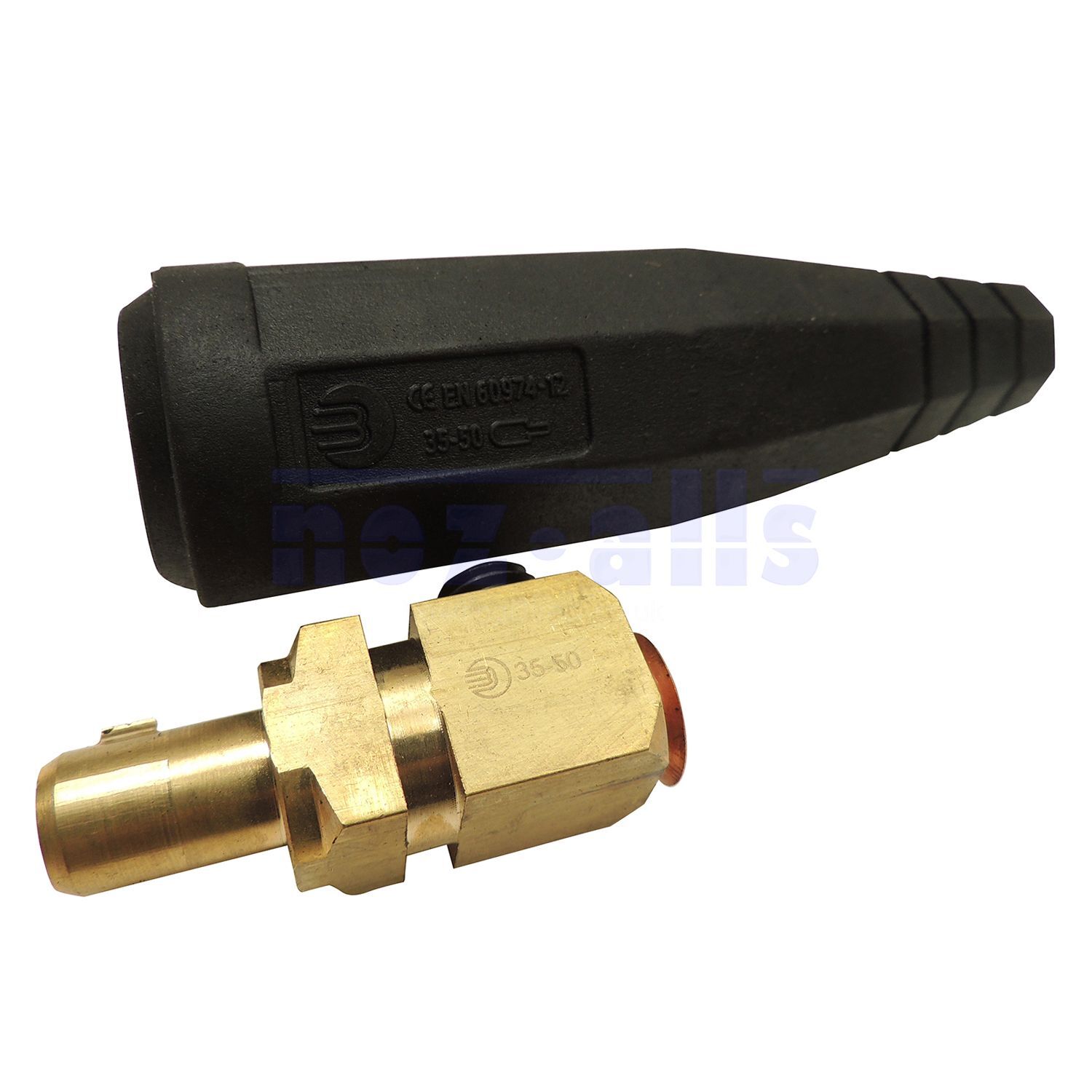

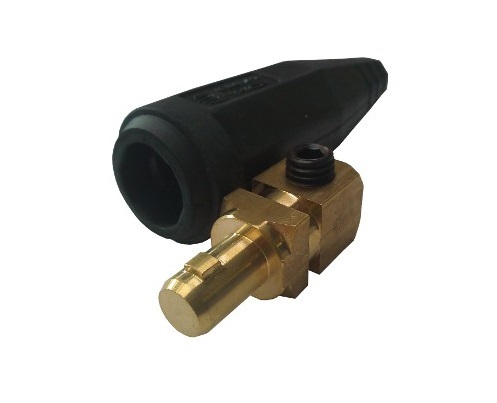

3550 BSB Cable Con Male Binzel 511.0315

These genuine Binzel heavy duty Dinse plugs have the larger size 12.9mm Dia. pin for this size dinse plug the cable entry hole is 11.5mm dia in the copper sleeve.
This size plug is the first of the larger sized dinse plugs for 35-50mm sq cable.
Part no. 511.0315
Pin dia - 12.8mm
Pin length to shoulder - 20mm
Brass lug length - 55mm
Square body - 20mm
Cable hole depth - 24mm
Copper sleeve length - 25mm
Copper sleeve bore - 11.5mm dia.
Insulating rubber cover length - 112mm
Insulating rubber width - 33 AF  36 Dia.
Assembled length - 132mm approx.

Part Number/SKU: 511.0315

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.
