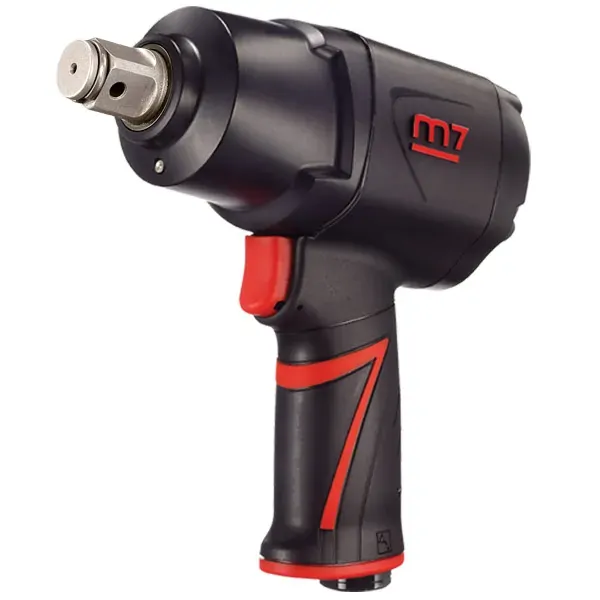

3/4" Drive Air Impact Wrench Pistol Style M7 (M7-NC6255Q)

FEATURES:

  • Patent grease hole makes greasing process extremely efficient.
  • The front housing & back head cover are constructed from magnesium alloy. While the rest of the tool is constructed from a durable composite material.
  • HUGE 1400 FT-LB after 5 seconds in reverse!

SPECIFICATIONS:

  • Square Drive: 3/4"
  • Bolt Capacity: 1" (25mm)
  • Torque Range: 200-1100 ft-lb / 271-1491 Nm
  • Max Torque at 5 seconds: 1400 ft-lb / 1890 Nm
  • Free Speed: 8500 RPM
  • Air Requirement: 4.8 CFM (136 LPM) / 90 PSI / 1/4" Inlet
  • Overall Length: 198mm
  • Net Weight: 1.9kg
  • Sound Pressure: 85dBA
  • Vibration Level: 4.5m/s²


Part Number/SKU: M7-NC6255QH

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

Part No.   M7-NC6255Q-6
Square Drive Inch 3/4″
Bolt Capacity Inch (mm) 1″ (25mm)
Torque Range ft-lb 200-1100
Nm 271-1491
Max Torque at 5 seconds ft-lb 1400
Nm 1890
Free Speed RPM 8500
Air Requirement CFM 4.8
PSI 90
Inlet 1/4″
Overall Length mm 350
Net Weight kg 2.38
Sound Pressure dBA 85
Vibration Level m/s² 4.7
SKU M7-NC6255QH
Brand M7
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
Unit Of Measure ea
