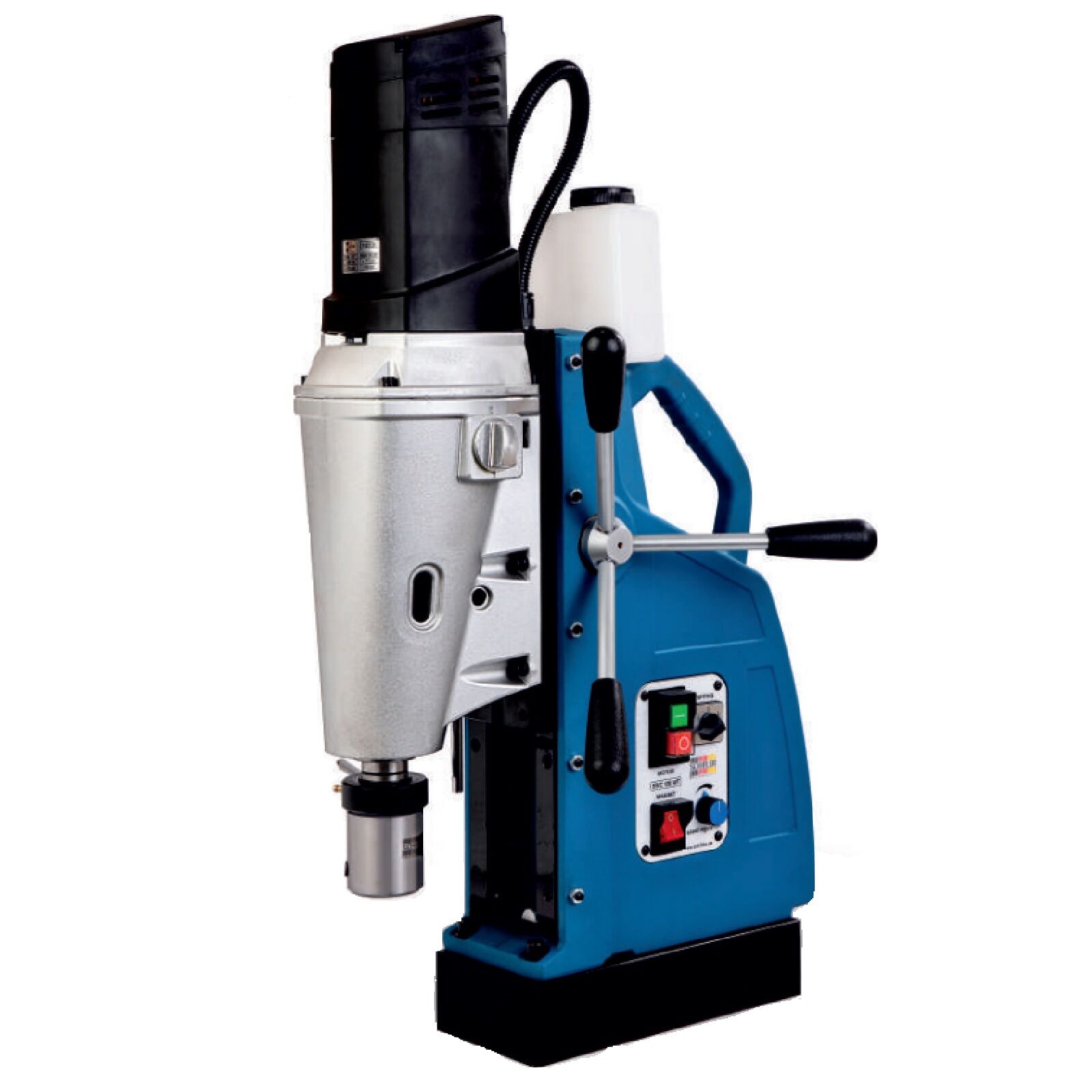

2500W Magnetic Drill Schifler SWC120

DESCRIPTION:

The Schifler SWC 120 WT comes equipped with a powerful 2500-watt motor and a strong magnetic base, which allows for stable and precise drilling operations. The machine also features variable speed control, which enables the operator to adjust the drilling speed to match the requirements of the specific application.
The  Schifler SWC 120 WT magnetic drilling machine is capable of tapping threads in addition to drilling holes. However, tapping operations require the use of a tapping attachment or tapping chuck that is compatible with the machine's spindle.
In addition, the machine is designed with safety features, including an overload protection system and a magnetic base with a safety switch that prevents the machine from operating if it is not properly attached to the workpiece.
Overall, the Schifler SWC 120 WT is a high-quality magnetic drilling machine that is suitable for a wide range of metalworking applications.

FEATURES:

  • 2500-watt motor
  • 2-120mm width cutter
  • 50mm cutting depth
  • 25000N magnet
  • No-load speed: 80-125min-1/175-300 min-1

INCLUDES:

  • Adaptor
  • Safety belt
  • tapper drit

SPECIFICATIONS:

Part No SWC120
Barcode 9333608052036
Motor power 2500 watt
Spindle MK-4
Broach cutter (35mm length) Ø12mm - Ø120mm
Broach cutter (50mm length) Ø12mm - Ø120mm
Broach cutter (80/100mm length) Ø18mm - Ø120mm
Twist drill Ø45mm
Counter sinking Ø80mm
Tapping M6-M38
Reaming Ø50mm
RPM 80-125min-1/175-300 min-1
Input supply voltage 240V
Electro torque control Yes
Net Weight (kg) 35
Product length (mm) 770
Product width (mm) 620
Product height (mm) 260




Part Number/SKU: SWC120

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU SWC120
Barcode # 9333608052036
Brand Schifler
Shipping Weight 39.50kg
Shipping Width 0.680m
Shipping Height 0.350m
Shipping Length 0.800m
Shipping Cubic 0.190400000m3
Unit Of Measure ea
