16mm Straights 16 x 3/8 - KQ2H16-03NS


Features:

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing. KQ2 fittings are available to order in multiples of 10.

Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa

SMC Part Description:

FITTING, MALE CONNECTOR
SMC Products Line:
CONNECTORS
SMC Family:
KQ2 FITTING
SMC Family Code:
NA
SMC Class Description:
KQ2 16MM
Weight:
.11854 lb

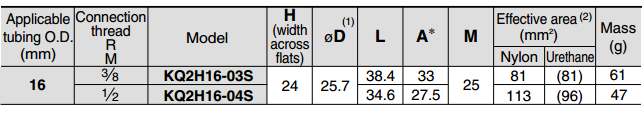

Specification:


Part Number/SKU: KQ2H16-03NS

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2H16-03NS
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
