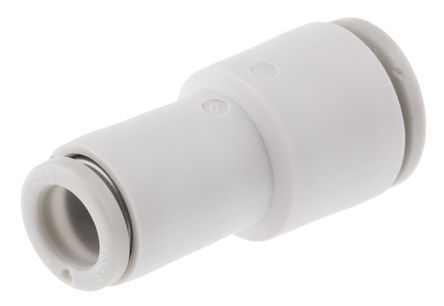

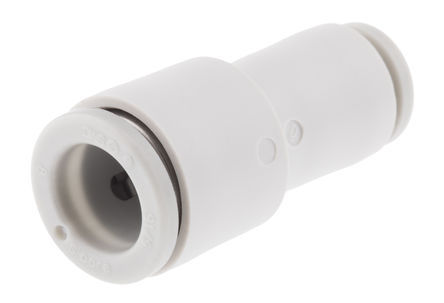

10mm STRAIGHTS 10 x 1/2 - KQ2H10-12A


Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction
・Compact and lightweight
Dimensions height direction 24% shorter
Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

Applicable tubing O.D.
(mm)
Model Note)
øD1
Note)
øD2
L M1 M2 Effective area
(mm2)
Min.
port
size
Weight
(g)
a b Nylon Urethane
ø10 ø12 KQ2H10-12A 15.9 18.5 33.6 15.6 17 41.5 29.5 7.5 7.2




Part Number/SKU: KQ2H10-12A

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2H10-12A
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
