10mm STRAIGHTS 10 x 1/8 - KQ2H10-01NS

Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction
・Compact and lightweight
Dimensions height direction 24% shorter
Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

Specifications:

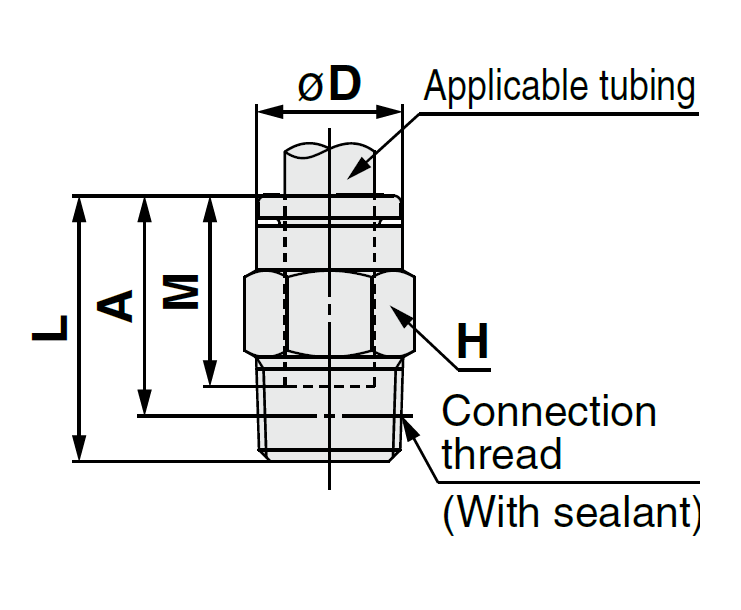

Applicable tubing O.D. (mm)	Connection thread R	Model	H (Width across flats)	øD	L	A*	M	Effective area (mm2)		Min. port size	Weight (g)
								Nylon	Urethane
ø10	1/8	KQ2H10-01NS	17	15.6	23.8	20.7	15.6	26.1	26.1	6	16.9

Part Number/SKU: KQ2H10-01NS

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU	KQ2H10-01NS
Brand	SMC
Shipping Weight	0.2500kg
Shipping Width	0.200m
Shipping Height	0.200m
Shipping Length	0.200m
