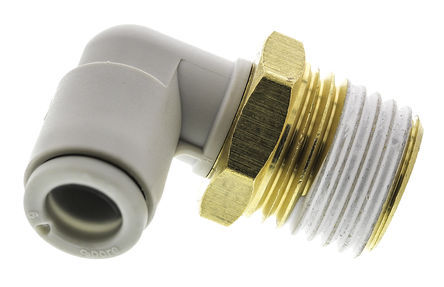

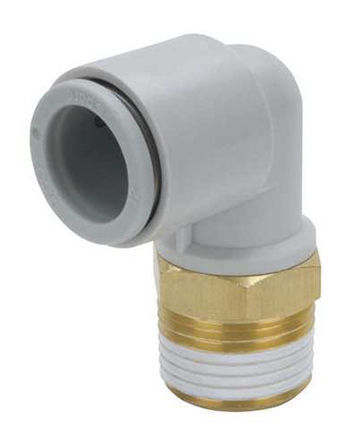

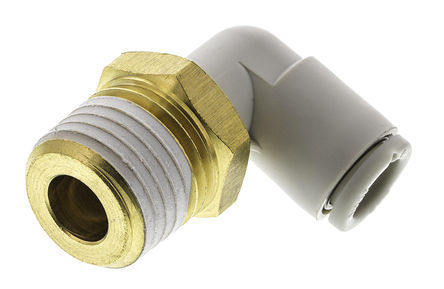

10mm ELBOWS KQ2L10-01NS 10 x 1/8 - KQ2L10-01NS



Features:

・Possible to use in vacuum to –100 kPa.
・Improved tube insertion/removal
Insertion force: Max. 30% reduction
Removal force: Max. 20% reduction
・Compact and lightweight
Dimensions height direction 24% shorter
Dimensions horizontal direction 23% shorter, Weight 57% lighter
・Body type: Totaled 51 models
・Thread material/Surface treatment(Treated or Non-treated): 2 types
・Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated

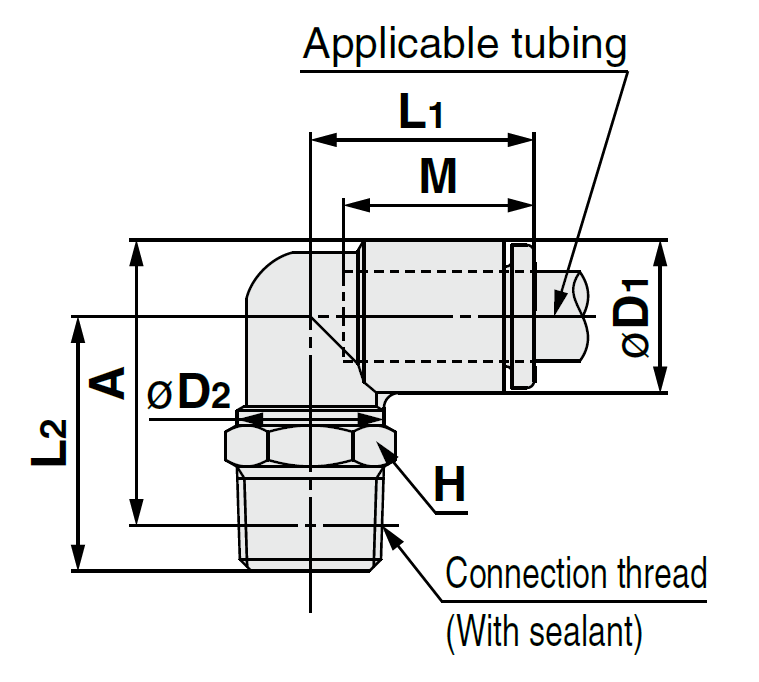

Specifications:

Applicable
tubing O.D.
(mm)
Connection
thread
R
Model H
(Width
across
flats)
Note)
øD1
øD2 L1 L2 A* M Effective area
(mm2)
Min.
port
size
Weight
(g)
Nylon Urethane
ø10 1/8 KQ2L10-01NS 12 15.9 12 18.6 23.6 28.4 15.6 21.6 14.9 6 11.1

Part Number/SKU: KQ2L10-01NS

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU KQ2L10-01NS
Brand SMC
Shipping Weight 0.2500kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.200m
