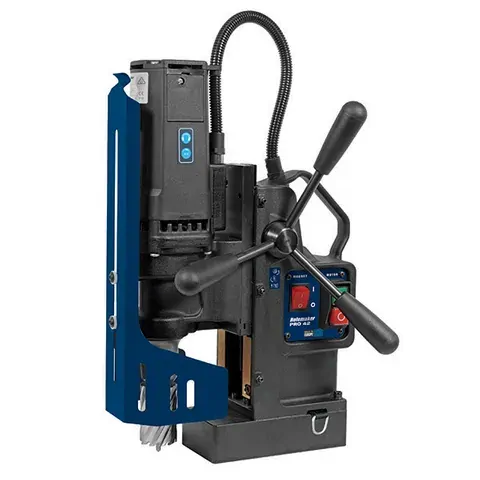

1020W Single-Phase Magnetic Base Drill with 5pce Cutter Set ITM HMPRO42K1

FEATURES:

  • European-made machine.
  • Extra large 165mm stroke allowing the use of an optimal 13mm twist drill chuck.
  • Through-spindle coolant system, with an external side-mounted gravity-feed coolant tank.
  • The feed handles can be placed on either the left or right-hand side, for increased versatility.
  • Smart magnet technology to ensure sufficient magnetic adhesion.
  • Integrated cutter guard for increased user safety.
  • Supplied in a blow-mould plastic carry case.
  • Grub screw arbor system, which fastens positively onto holemaker cutters.
  • 13mm drill chuck SADCA-13 available separately.

SPECIFICATIONS:

Capacity (Diameter) 42mm
Capacity (Depth) 52mm
Capacity (Twist Drills) 10mm (Jobber Drills)
Capacity (Twist Drills) 13mm (Stub Drills)
Capacity (Twist Drills) 16mm (Weldon Shank Drills)
Motor Power 1020 Watt
Input Power 1100 Watt Single Phase 240V
Speed 440rpm
Weight 12.5kg
Magnetic Dead Lift 9,900Nm on 25mm Steel Plate
Stroke 165mm
Height (Min. / Max.) 346 / 511mm




Part Number/SKU: HMPRO42K1

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU HMPRO42K1
Brand Holemaker
Unit Of Measure Pk
