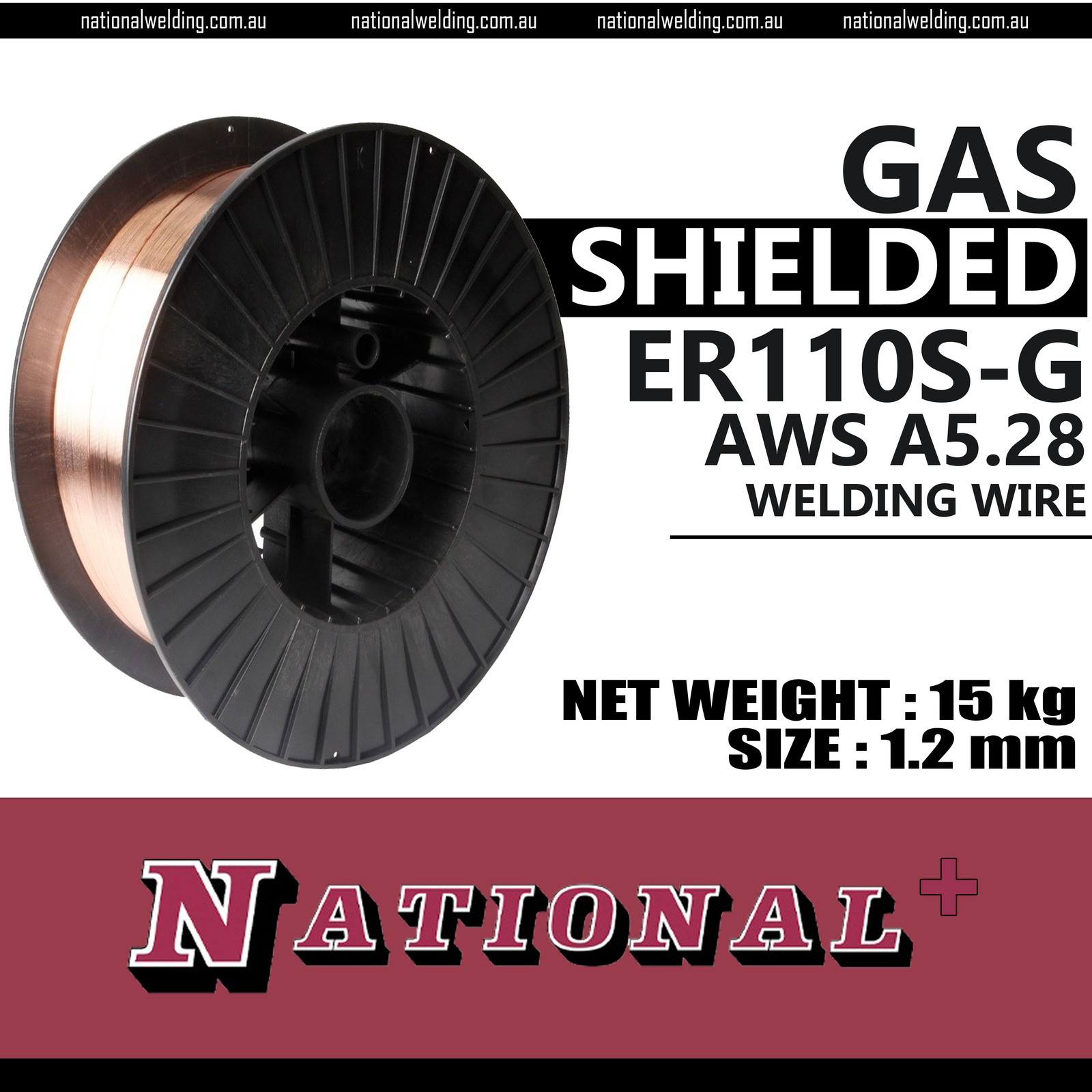

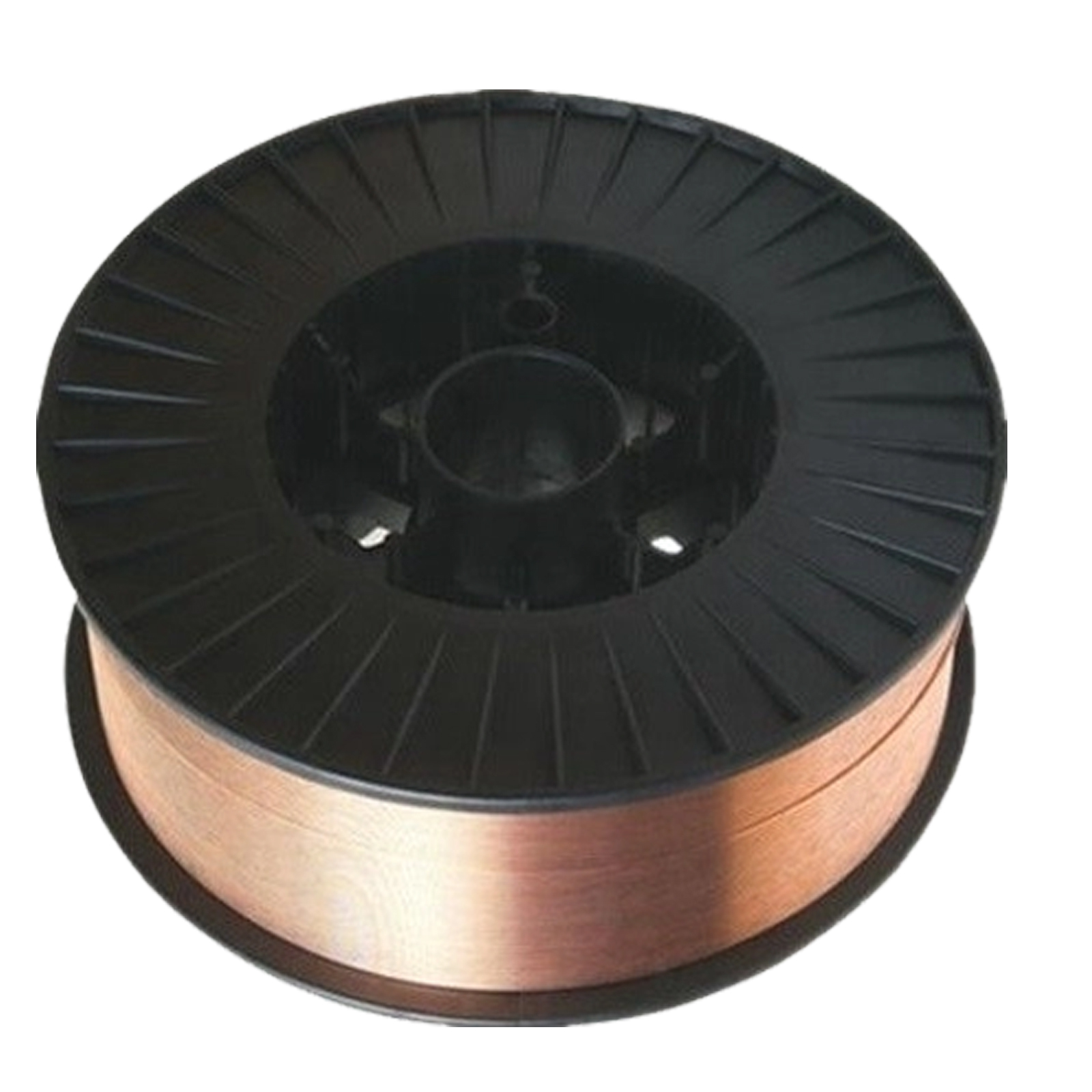

1.2mm 15Kgs Spool Gas-Shielded AWS A5.28 ER 110S-G Welding Wire 110S-G12

Use with 5-25% CO2/ Ar mixed shielding gas. Capable of producing welds with 760 MPa tensile strength & high impact values at -40℃. Designed to be used in applications such as crane manufacturing &o­ffshore.

Advantages

• Excellent weldability - Stable arc, low spatter, low clean up, suitable for both short-circuit transfer and high current spray transfer.
• Superb feedability - Unique manufacturing technology results in a clean wire surface, smooth copper coating layer and an even amount of feeding lubricant. These advantages ensure lower friction during wire feeding and better electrical conductivity

AWS A5.28 ER110S-G
MIG welding wire AWS A5.28 ER110S-G,is a kind of high strength gas-shielded welding wire. The mixed gas Ar+20% CO2 can be used as shielding gas. It has soft arc, stable burning and low spatters. The bead has higher impact toughness.

Features:

• Copper Coated, Low Allloy Gas Metal Arc (MIG) Welding Wire.
• All Positional Welding of Medium and High Strength Steels
• Welded Strength 760 MPa Tensile Class

Classification:

AS/NZS 16834-B G 78A 4U M21 G
AWS A5.28 ER110S-G

Description & Applications:

Austmig NiCrMo is a copper coated, low alloy solid wire suitable for the all positional welding of high strength steels using Argon + CO2 gas mixtures.
Austmig NiCrMo is ideal for the full strength welding of quenched and tempered structural steels, of the 760 MPa tensile class, such as USS-T1, CcMo Pipe, Welten 80, Weldox 700, X80, N-A-XTRA and Bisplate 80.

Operational Data:

Wire Size (mm) - 1.2mm
Welding Current Range (A) - 120 - 350
Arc Voltage Range *(V) - 18 - 32
Welding Current DC +
*Voltage is determined by arc current and electrode arc length. Welding currents and voltage shown are operational guides only.
NOTE: Austmig NiCrMo is NOT to be used in weldments which are to be stress relieved.

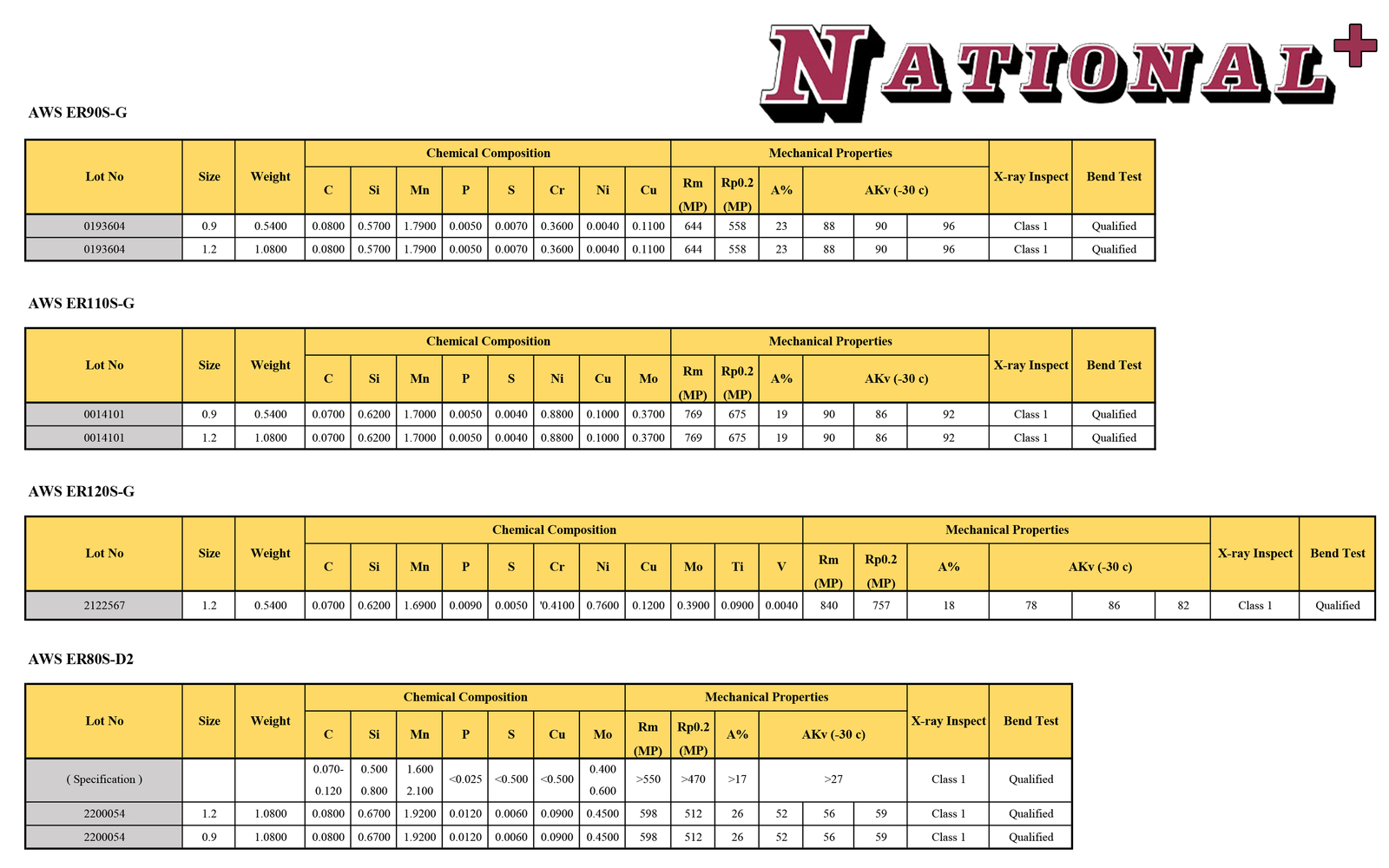

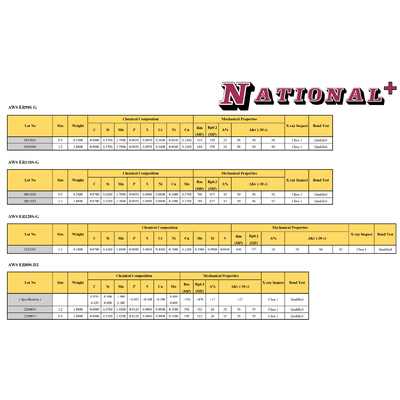

Typical All Weld Metal Chemical Analysis:

C - 0.08
Mn - 1.60
Si - 0.60
Ni - 1.50
Cr - 0.30
Mo - 0.30
V - 0.10

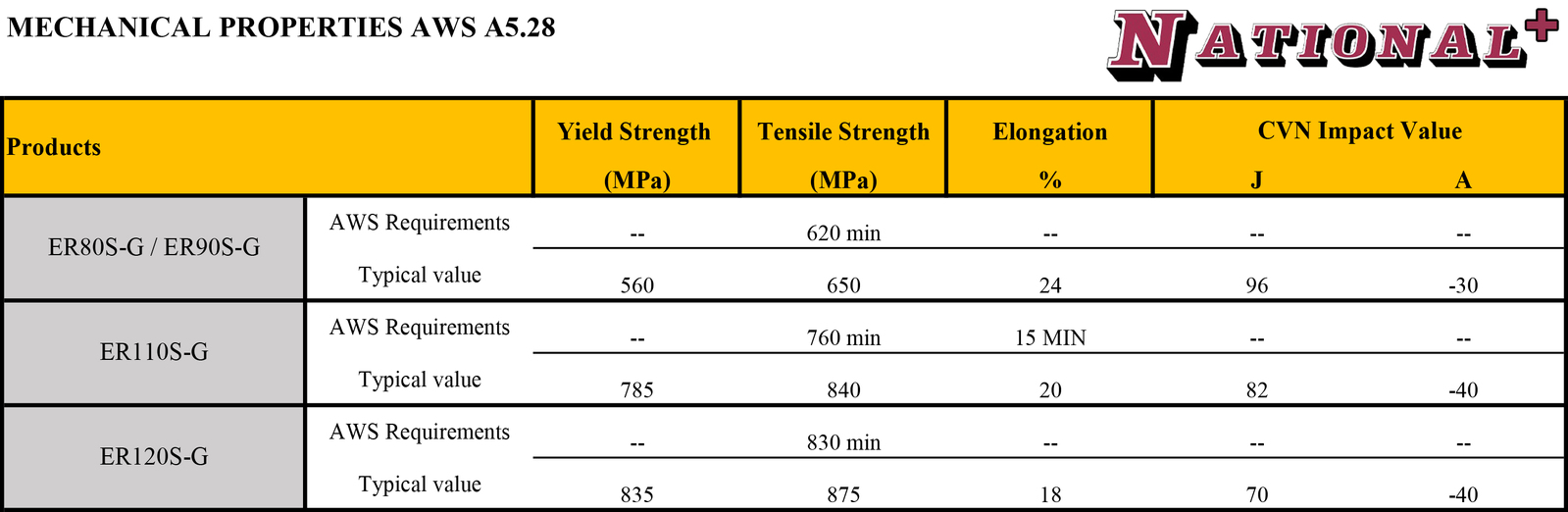

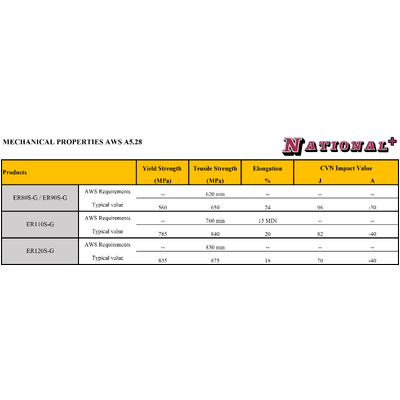

Typical All Weld Metal Mechanical Analysis:

Gas Type - Ar+18% CO 2
Yield Stress - 750 MPa
Tensile Strength - 800 MPa
Elongation - 19%
CVN Impact Values - 70J @ -40ºC
In as welded condition.
NOTE: The use of less oxidizing argon based gas mixtures (ie Ar/O2 , Ar/CO2 , Ar/CO2 /O2 ), will result in higher alloy recovery in the weld metal, leading to higher tensile properties.

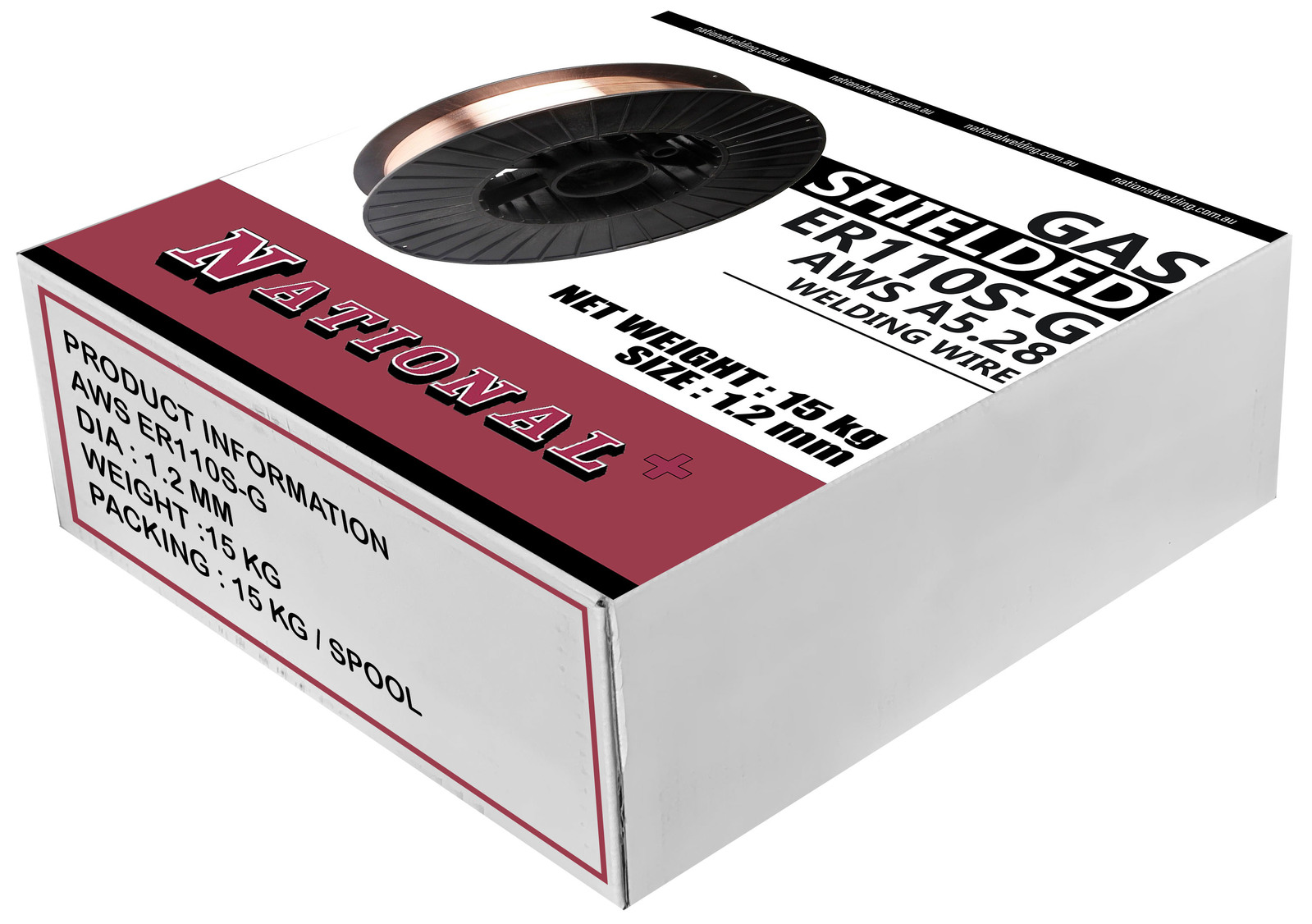

Packing Data:

Wire - 1.2mm
Pack Size and Type - 15kg Spool
