1.2MM 15KGS Spool AR Mixed Shielding Gas AWS A5.28 ER 120S-G Welding Wire 110S-G12

Characteristics
ER 120S-G is a medium alloy, copper coated welding wire sited for MIG or TIG welding.

Applications
ER 120S-G is used to weld HY100 and other similar steels. Welds exhibit high strength as well as low temperature toughness, good resistance to cold cracking. Used for joining large vehicle and crane manufacturing, high strength pressure vessels and some heat treatable steels.

Features

• Excellent weldability - Stable arc, low spatter, low clean up, suitable for both short-circuit transfer and high current spray transfer.
• Superb feedability - Unique manufacturing technology results in a clean wire surface, smooth copper coating layer and an evenamount of feeding lubricant. These advantages ensure lower friction during wire feeding and better electrical conductivity
• Use with 5-25% CO2/ Ar mixed shielding gas. Capable of producing welds with 830 MPa tensile strength. It’s suitable for applications such as crane manufacturing & off­shore.

Classifications
AWS    AWS A5.28 ER120S-G

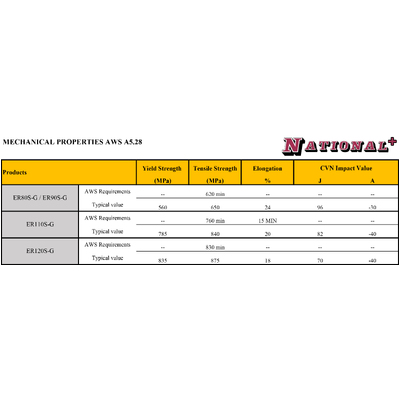

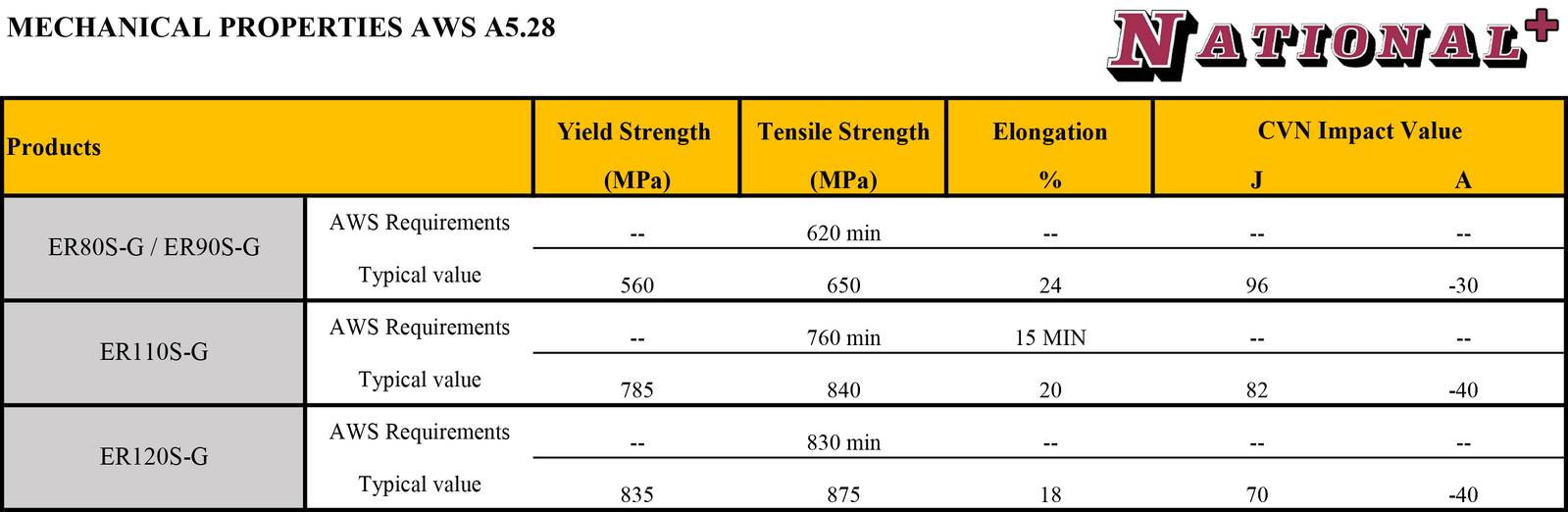

Mechanical Properties

• TENSILE    950 MPa
• YIELD    890MPa
• ELONGATION    16 %
• IMPACTVALUE    66 Joules
• amp12    180-220
• Pack Size    15kg
• Shield Gas    75% Ar 25% O2

Chemical Analysis

• Carbon    0.09
• Manganese    1.9
• Phosphorous    0.005
• Silicone    0.80
• Sulphur    0.005
• Chromium    0.35
• Molybdenum    0.55
• Nickel    2.15
• Copper    0.13
