TAP T180 G 3/4-14 (BSPF) GUN N DIN5156 B HSSE TiN T1802644



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN5156
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: ISO 228
  • Lead: Form B / 4.5 x P




Part Number/SKU: T1802644

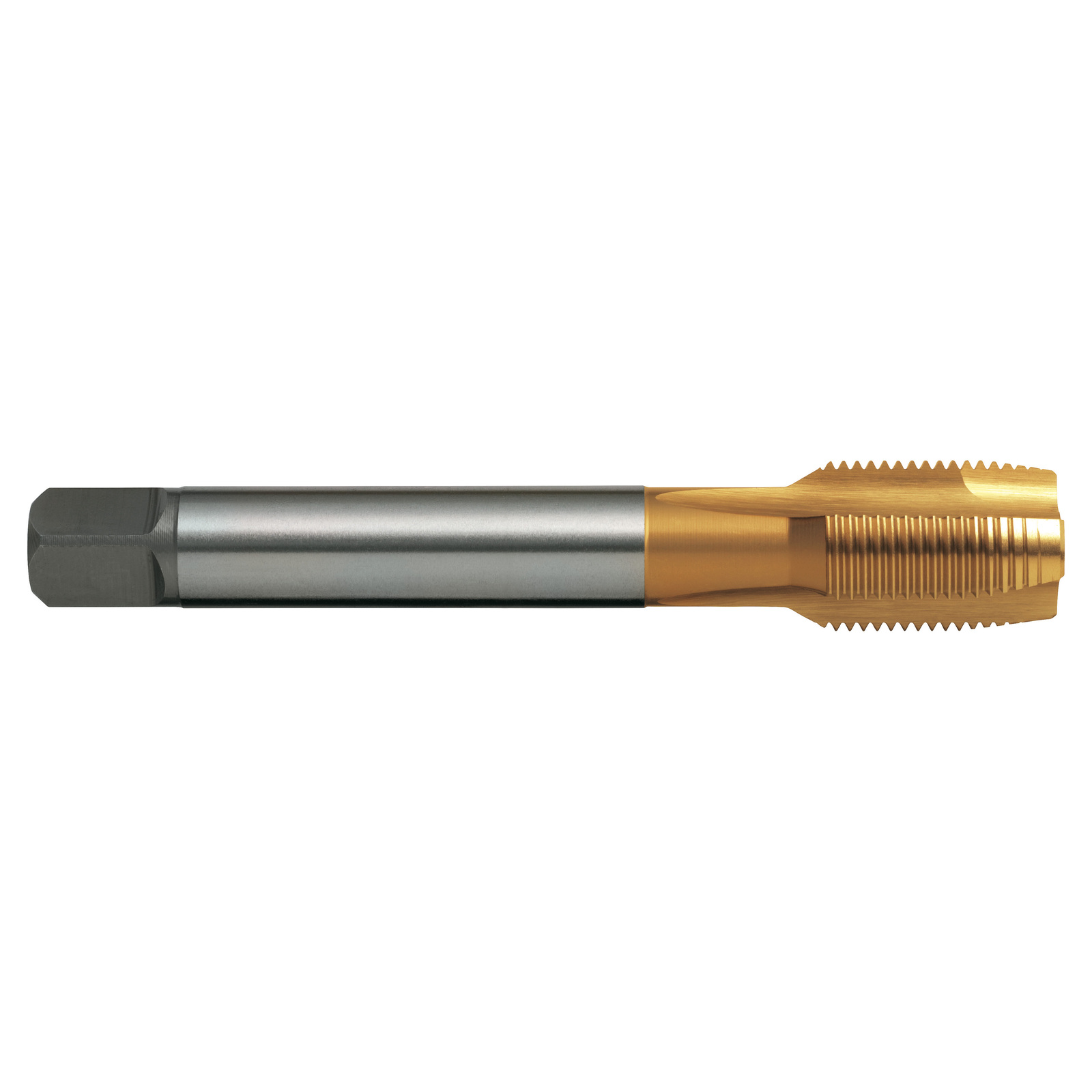

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1802644
Barcode # 9311963170268
Brand Sutton Tools
Shipping Weight 0.3620kg
Shipping Width 0.029m
Shipping Height 0.029m
Shipping Length 0.145m
Shipping Cubic 0.000121945m3
