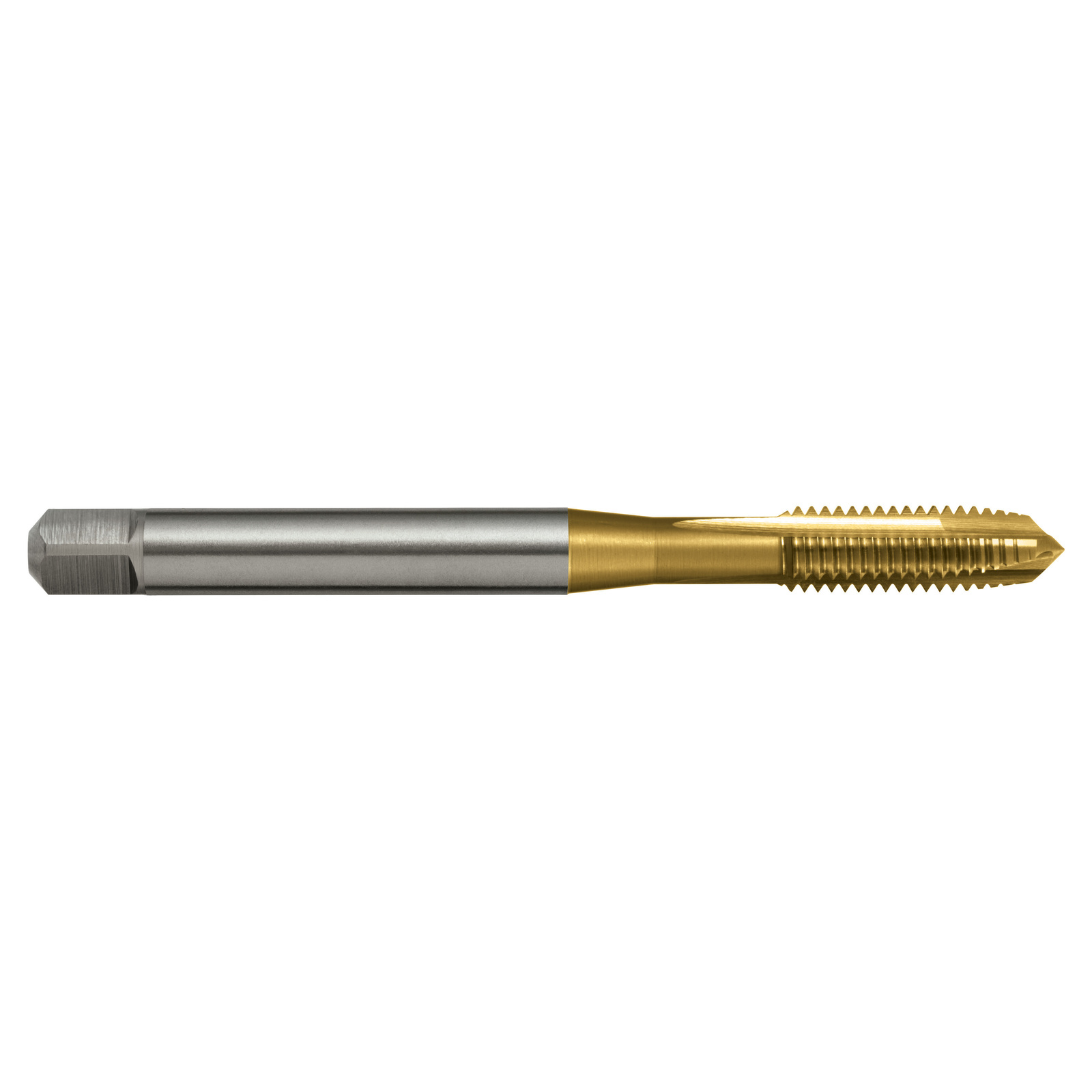

TAP T167 UNC 2-56 2B GUN N DIN2184-1 B HSSE TiN T1670218



Features

  • General purpose use, materials up to approx. 1000 N/mm2
  • Through holes
  • Suitable for machine operations
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN2184-1
  • Thread Form: UNC
  • Nut Tolerance: 2B
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
  • Steel - High alloy, cast & tool: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Part Number/SKU: T1670218

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU T1670218
Barcode # 9311963521725
Brand Sutton Tools
Shipping Weight 0.0030kg
Shipping Width 0.009m
Shipping Height 0.008m
Shipping Length 0.063m
Shipping Cubic 0.000005000m3
