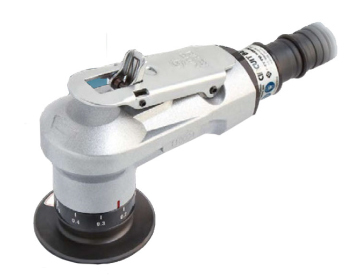

Circuit Beveler 0.5Kg Nitto NTCB-01

Ideally suited for chamfering machine and mold component parts.

Features

  • Bevels 0-1mm C 45 degrees
  • Bevels either inner or outer edges
  • Chamfers down to 6.8mm diameter holes
  • Indexable inserts 2pcs
  • Minimum plate thickness 1.5mm
Applications
  • General steel bevelling
Standard Accessories
  • Indexable insert : 2 pcs (installed)
  • Indexable insert set screw : 2 pcs (installed)
  • Indexable insert set screw : 2 pcs (a back up supply)
  • Hex key 2 for chamfering adjustmants ; 1 pc
  • T-6F wrench for cutter set screw : 1 pc
  • Bushing R 1/4 x NPT 1/4 : 1pc
Optional Accessories
  • TB09097-0 Indexable insert (10pcs/set)
  • TB09140-0 Guide plate 78 Assembly
  • TB09143-0 Plate Assembly for straight edge use
    *Requires use of TB09140-0 Guide Plate 78 Assembly*

​Specifications

  • Model CB-01
    Rated Air Pressure 90 psi
    Air Consumption (no Load) 0.15m3/min
    No Load Speed 28,000prm
    Chamfer Capacity Mild Steel 0C - 1C 2R
    Chamfer Angle 45 Deg
    Weight 0.5 Kg

Part Number/SKU: NTCB-01

* Product Images are for illustration purposes only, unless otherwise specified colour may be different.

SKU NTCB-01
Brand Nitto
Shipping Weight 4.0000kg
Shipping Width 0.500m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.045000000m3
Unit Of Measure ea
